Si-Fe Tube Anode Home > Si-Fe Tube Anode
Si-Fe Tube Anode

Compare with the HSCI solid rod anode, High Silicon Cast Iron tube anodes can:
1. Minimize the resistance of anodes to electrolytes.
2. Increase the surface to weight ratio, thus can reduce current density and distribute the
produced gases over larger areas. It is very important for deep layer installations.
3. Improve current distribution, relaxes end electric discharge, while the cable joint is located
in the center of the tube.

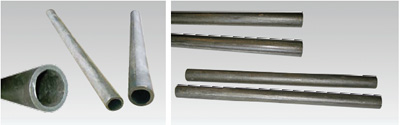

HSCI Si-Fe Tube Anode
Specification

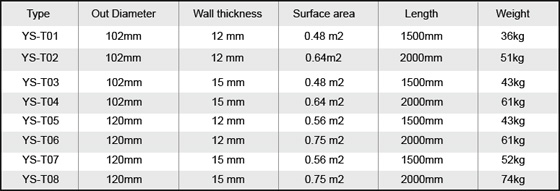

HSCI Tube Anode Specification
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.
