Anode Galvanic Home > Anode Galvanic


Magnesium anodes are commonly used in cathodic protection, as Mg metal has the more negative potential than other galvanic materials.
Howerer, in order to ensure the high quality of the magnesium anode, we not only use the high pure magnesium ingot, but also take advanced technology to insure the purity of the alloy. Our company have developed a new casting technology over more than ten years of anode manufacturing experience.
We only use the above 80% high pure alloy of the melting in casting the anode, and further the whole casting procedure is protected by inert gases so that the anodes would not contain any inpurities, such as the oxidation slag inclusion caused by solvent and burning. By adopting this developed technology our anodes can avoid the common defects brought from the conventional hand casting.

"D" type anodes "R" type anodes
"D" type "D" type

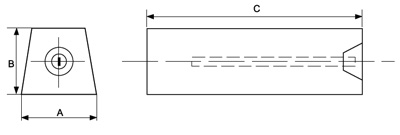

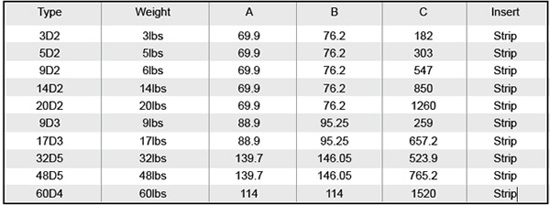

"D" Type
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.

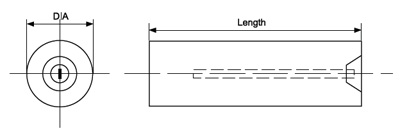

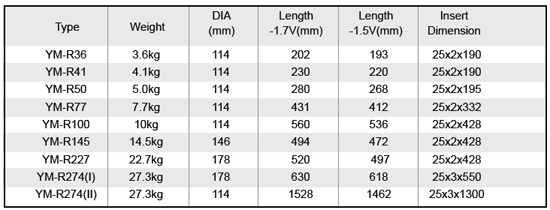

"R" Type
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.

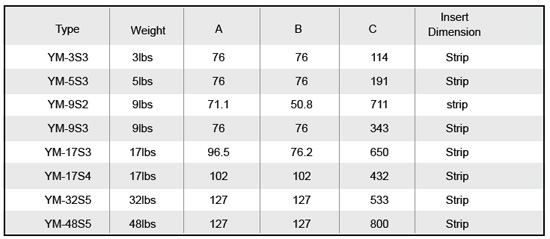

"S" Type
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.
*Above anodes available ex-store
* Above anodes supplied in both bare and packaged forms.
* Besides above anodes, we also supplying Hull Anode, Tank Anode, Rectangular Anode.
* Special size anodes can be made upon receipt of your request.
