Aluminum Anode Home > Aluminum Anode
Aluminum Anode

We supply series of aluminum anode for defend the corrosion of steel structures in seawater. The Performance of the anode will be affected by the chemical composition of the alloy. We adopt high purity Aluminum ingot for the anodes.
The anodes are cast automatically, thus the anode alloy is uniform, free of dust and oxides. We have different alloy series to meet customer's request:
a).YA-I series, AL-Zn-In-Si, Al-Zn-In-Ti alloy Suitable for seawater environment.
b).YA-II series AL-Zn-In-Mg-Ti Alloy
Suitable for seawater environment, specially suitable for where the fresh water and seawater mixed, and have a higher resistance.

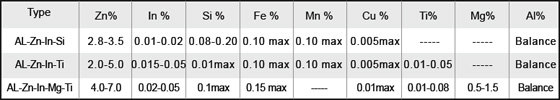

Chemical composition
Aluminum Anode Chemical Composition

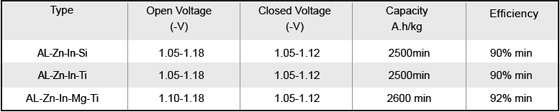

Electrochemical properties
Aluminum Anode Electrochemical Characteristic
Size specification

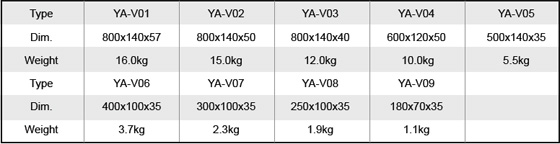

1.For vessel
The dimension: length x width x thickness Size specification Dim. 06 07
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.

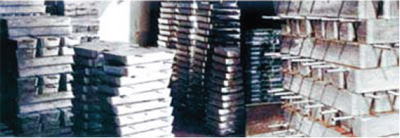

Aluminum Marine Anode
Marine Anode

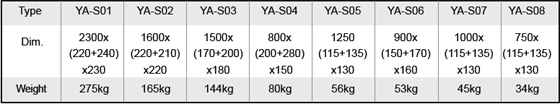

2. For ballast tank
The dimension: length x (up width + bottom width) x thickness
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.
Aluminum Ballast Tank Anode
3. For Sea port and offshore structure
Sea Port / Offshore Anode
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.
Offshore Anode Sea Port anode
4. Pipe line in sea water
Bracelet Anode
The anodes are bracelet shape, the dimension: Out diameter x thickness x length x distance of bracelet.
* All dimensions and weights shown are nominal. actual dimensions/weight will be adjusted according to drawings.
Bracelet Anode Bracelet Anode
Bracelet Anode Bracelet Anode
